Simpson Strong-Tie

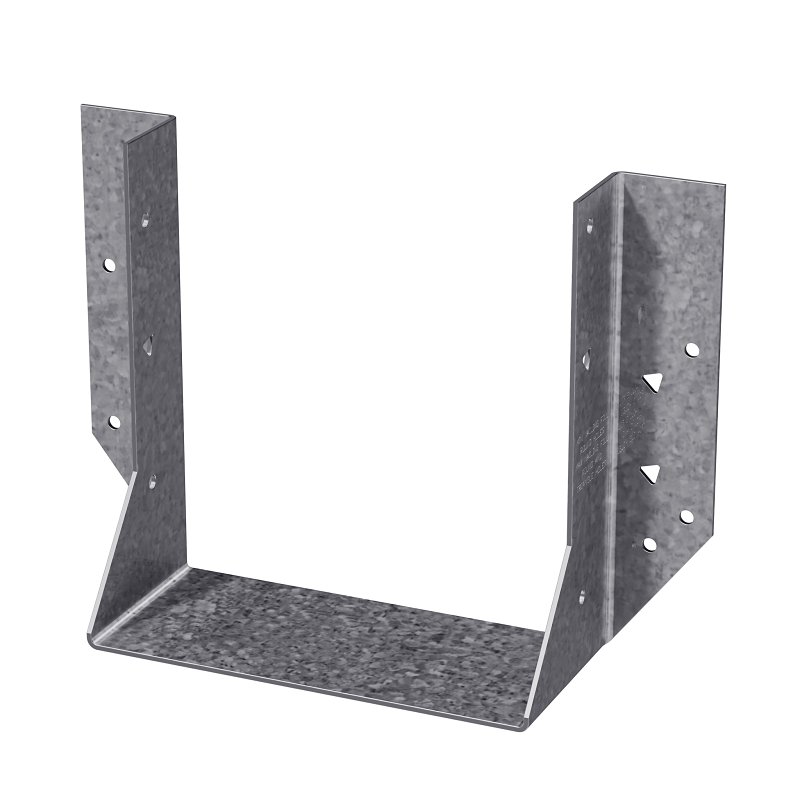

Simpson Strong-Tie HU HU68 Joist Hanger, 5-13/16 in H, 2-1/2 in D, 5-1/2 in W, 6 x 8 in, Steel, Galvanized
- Depth: 2-1/2 in
- Fastener Type: Nail
- Finish: Galvanized
- Material: Steel
- Mounting Type: Face
- Model #: HU68
- UPC #: 044315417009
- SKU: 7494875
Your shopping list will be used for pickup in-store
Product Details
The HU is designed for structures requiring additional strength and safety factors. Some models of this heavy-duty, face-mount hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45 deg.Key Features
- Extra optional triangle holes for additional load
- HU series hangers are tested, load-rated and code compliant
- "U" design allows for flexibility of placement on the header
- Made from 14 ga steel
- Galvanized (G90) for extra corrosion resistance
Item Specifications
| Depth | 2-1/2 in |
|---|---|
| Fastener Type | Nail |
| Finish | Galvanized |
| Material | Steel |
| Mounting Type | Face |
|---|---|
| Size | 6 x 8 in |
| Skew Angle | 45 deg |
| Width | 5-1/2 |
MORE DETAILS:
- Simpson%20Strong-Tie%202024%20Catalog.pdf
- Application: For structural composite lumber, pre-fabricated wood I-joists and glulam beams
